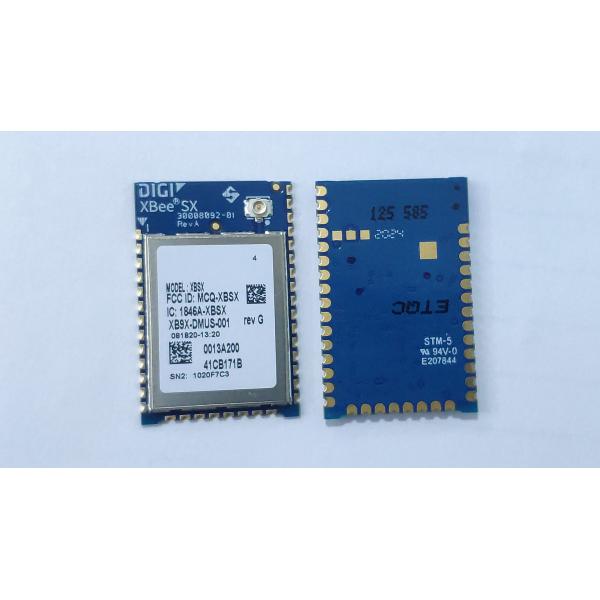

DIGI SX 1W 105km Drone Telemetry Radio Module - Compatible with Pixhawk, AMP, Zero Tech, and Feiyu Flight Controllers

Ask Lasest Price
Brand Name :	HUARAY
Model Number :	XBee SX
Certification :	CE, FCC, Rohs
Delivery Time :	in two working days
Payment Terms :	T/T, Western Union, Paypal
Supply Ability :	50,000pcs/year
Price :	Negotiable

Add to Cart

Product Details
Company Profile

DIGI SX 1W 105km Drone Telemetry Radio Module - Compatible with Pixhawk, AMP, Zero Tech, and Feiyu Flight Controllers

Key attributes

Brand Name

DIGI

Model Number

XBee SX

Type

Rf transceiver modules and modems

Mounting Type

N/a

Manufacturing Date Code

N/a

Place of Origin

null, Guangdong

Description

Xbee sx

Application

Rf transceiver modules and modems

Series

Xbee sx

Features

N/a

Frequency

433.92

Antenna Type

N/a

Sensitivity

-92dbm

Power - Output

Utilized IC / Part

N/a

Data Rate

1.2g

Voltage - Supply

3.6v

Current - Receiving

1.5a

protocol

Aps

Memory Size

Packaging and delivery

Selling Units

Single item

Serial Port up to 921.6Kbps | SPI Interface up to 6Mbps | 2.4-3.6V DC Power | 55mA TX Current | 2.5μA Sleep Current DIGI SX 1W 105km Drone Telemetry Radio Module - Compatible with Pixhawk, AMP, Zero Tech, and Feiyu Flight Controllers

Ultra-Compact Size: 3.38 x 2.21 x 1.29 cm | Ultra-Lightweight: 3g DIGI SX 1W 105km Drone Telemetry Radio Module - Compatible with Pixhawk, AMP, Zero Tech, and Feiyu Flight Controllers

Product parameters:

Specifications

Parameter	Specification
Model	XBP9XT-DPUS-001
Frequency Band	ISM 902 to 928 MHz
Transmission Distance	Urban/Indoor: 305m (@2.1dBi antenna) Open Field (Max): 64km (@high-gain antenna) Open Field (Max): 22km (@2.1dBi antenna)
Transmit Power (Selectable)	100 mW - 1 W (20 - 30 dBm)
Receiver Sensitivity	-110 dBm (@9,600 bps throughput) -100 dBm (@115,200 bps throughput)
Over-the-Air Data Rate	9600 bps or 115.2 Kbps
UART	1200 bps - 921600 bps
SPI	Up to 6 Mbps
Transmit Current	Max 900 mA @ 30 dBm
Receive Current	40 mA (@3.3V)
Sleep Current	2.5 μA (@3.3V)
Input Voltage	2.6 to 3.6 VDC
Spread Spectrum	FHSS
Modulation	Gaussian Frequency Shift Keying (GFSK)
Antenna Interface	U.FL
Wireless Protocol	Point-to-Point, Point-to-Multipoint, End-to-End, MESH
Encryption	AES-256 / AES-128
Certifications	FCC (USA), RCM (Australia), IC (Canada), RoHS
Dimensions	3.38 x 2.21 x 1.29 cm
Weight	3 g
Operating Temperature	-40°C to +85°C (Industrial Grade)
