| Brand Name : | HUARAY |
| Model Number : | HR-2000 |
| Certification : | FCC, CE, RoHS |
| Delivery Time : | 1~3 days |
| Payment Terms : | T/T, Western Union, Moneygram, Paypal |
| Supply Ability : | 500,000pcs/year |
| Price : | Negotiable |

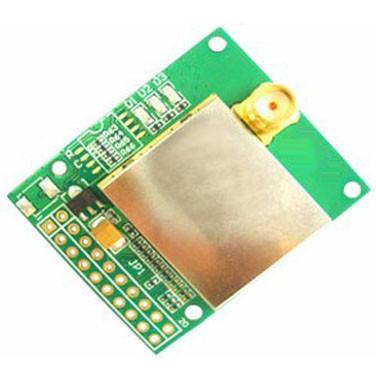

2.4G ZigBee Modules
--- Smaller size, high anti-interference, automatic network
* Home appliances intelligent control
* Auto Meter Reading system
* Industry telemetry and automatic data collection system
* Temperature and humidity control system for hotel, computer room
and factory
* Wireless monitor, door's security, personnel orientation
* Traffic and the control for street lamp
* Logisties, active RFID and wireless handheld terminal
PERFORMANCE | |
Power Output: | 4dBm (2.5mW) |
RF Line-of-sight Range: | 300m(BER=10-3) |
RF Effective Rate: | 250kbps |
Interface baud rate: | 2400～115200bps |
| Space Channel: | 5MHz |
Bandwidth: | 2MHz |
| Receiver Sensitivity: | -97dBm |
SYSTEM CHARACTERISTIC | |
Networking Topology: | IEEE 802.15.4 protocol, ZigBee antomatic network.Transparent,formatted API and AT command |
| Modbus transmission protocol (Optional ex-factory) | |
| RF IC: | TI CC2530F256, 256K Flash |
| 4 ways ADC, 4 ways IO port (customized) | |
COMPATIBILITY | |
HR-2001 | |
POWER | |
Supply Voltage: | +3.0~3.6V |
Transmit Current: | ≤40mA |
Receive Current: | ≤27mA |
Sleep current: | ≤3μA (customized) |
GENERAL | |
Communication Mode: | Half-duplex |
| Frequency Band: | 2.4~2.5GHz |
Modulation Mode: | QPSK |
Channel: | 16 (Default) |
Interface: | TTL/UART |
PHYSICAL PROPERTIES | |
Size: | 25.5mm×24.4mm×4mm (excluding antenna base and data pin) |
Weight: | 25g |
Antenna Base: | 50Ω,pcb antenna |
Operating Temperature: | Industrial: -40℃~+80℃ |
Frequency Stability: | ±20ppm |
| CERTIFICATIONS | |
| FCC, CE, RoHS | Meet |
